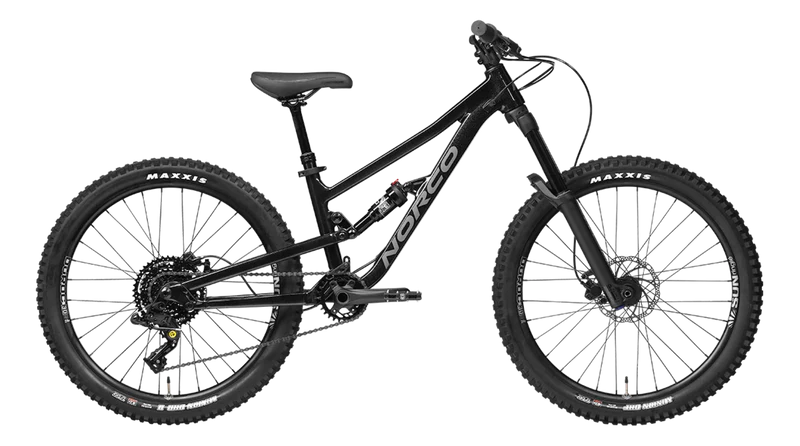

Norco Fluid FS 2 24 Youth Dual Suspension Mountain Bike
Norco Fluid FS 2 24 Youth Dual Suspension Mountain Bike
The Norco Fluid FS 2 24 is an aggressive trail bike meticulously designed to conquer demanding trails, offering a top-tier riding experience for young adventurers. Built with the same commitment to quality and craftsmanship as Norco's full-size bikes, the Fluid FS ensures that every trail is met with enthusiasm, and its premium components guarantee durability and reliability, keeping it on the trail and out of the shop. The Fluid FS Youth’s combination of long reach, slack head tube angle and steep seat tube angle make for powerful pedaling, increased climbing traction and added grip and control. Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so the suspension and droppers move properly under riders below 90 pounds. Youth-specific touch points, sized to provide ample grip and support for smaller bodies, don’t sacrifice the performance and durability that dedicated riders need.
- Suspension components built for young riders
- Designed to fit small and perform big
- Adult quality and durability, but built to fit
- Manitou Machete J-Unit Comp 24", 145mm travel fork
- X-Fusion 02 Pro R shock
- Box Four 8 speed drivetrain
- Tektro hydraulic disc brakes, 160mm rotors
- Bear Pawls hubs with Maxxis Minion tyres
Bottom bracket: | BSA Threaded |
---|---|
Brakes: | Tektro HD-J285 Hydraulic, Organic Pads |
Cassette: | Box Four, 11-42T, 8 Speed |
Chain: | Box Four 8 Spd Chain |
Crankset: | Alloy Two Piece, 28T Narrow Wide, 140mm |
Derailleur rear: | Box Four Wide |
Fork: | Manitou Machete J-Unit Comp 24", 145mm Travel |
Frame: | 6061 Alloy Frame, 120mm Travel, Tapered Head Tube, ISCG05 Mount |
Grip: | Jr. Lock-On |
Handlebar: | 6061 Aluminum, 660mm, 15mm Rise |
Handlebar stem: | 6061 Alloy, 35mm Length, 31.8mm Clamp |
Headset: | Sealed Cartridge Bearing, Tapered |
Hubs: | FRONT: Bear Pawls 15x110mm Boost, 32H, 6 Bolt / REAR: Bear Pawls 12x148 Boost, 32H, HG, 6 Bolt |
Pedals: | VP-225 Jr. Flat |
Rim: | Stan's Flow K 24", 32H |
Rotor front: | Tektro 160mm |
Rotor rear: | Tektro 160mm |
Saddle: | Norco Youth |
Season: | 2022 |
Shifters: | Box Four Multi |
Shock: | X-Fusion 02 Pro R, 170x35mm |
Spokes: | Stainless, Black |
Tyre front: | Maxxis Minion DHF EXO/TR 2.4" |
Tyre rear: | Maxxis Minion DHR II EXO/TR 2.3" |
Wheel size: | 24" |
Travel (mm front/mm rear)24"145/120Reach24"350Stack24"531Head Tube Angle24"64.5Fork Offset24"40Seat Tube Length24"305Effective Seat Tube Angle24"75.0Rear Centre Length24"407Bottom Bracket Rise/Drop24"-5Bottom Bracket Height24"305Horizontal Top Tube24"492Wheelbase24"1052Standover24"569Head Tube Length24"100Trail24"106Recommended Seatpost Drop24"100Maximum Post Insertion24"160Stem Length24"35Crank Length24"152Tire Size24"2.35" - 2.6"
