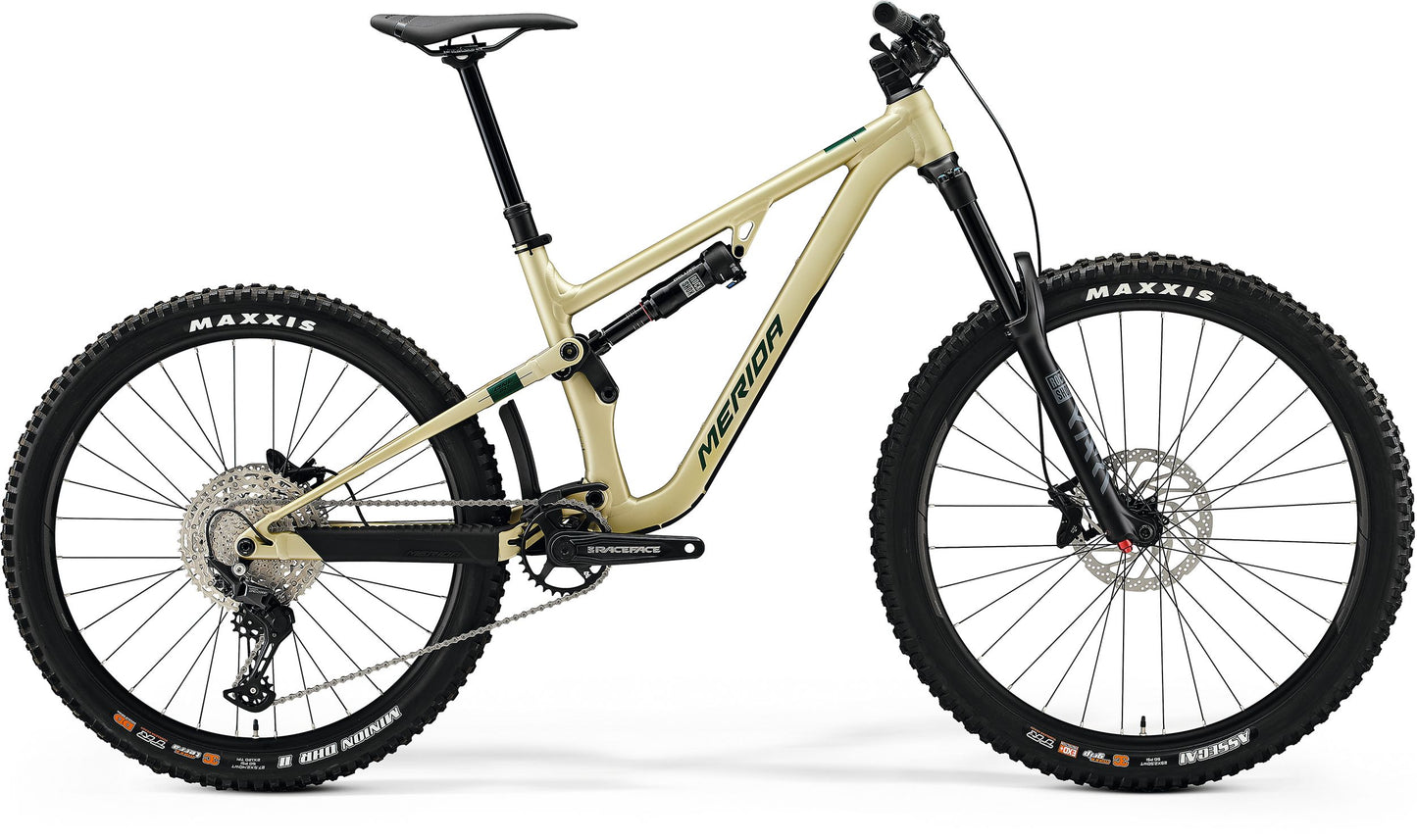

Merida One Sixty 500

Merida One Sixty 500

$3,100.00 NZD
$4,500.00 NZD $3,100.00 NZD
Sale Sold out
Tax included.
Size

A bike that can take on everything from enduro races to epic, big mountain descents or gnarly bike parks. The all-new 2022 One Sixty 500 gets radical new geometry and suspension design in a tough all-aluminium frame package, paired to components that deliver rock-solid performance and ironclad value. A RockShox Yari fork and Deluxe shock can take the rough with the rougher, while the four-piston Shimano brakes and wide-range drivetrain are tough and consistent. Merida’s new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts.

  • Full aluminium frame with smooth welding & internal cable routing
  • FAST kinematic suspension and radical new enduro geometry
  • Mixed Mullet or full 29er wheels with AGILOMETER sizing
  • Rock Shox Yari RC, Air, 170mm fork
  • Rock Shox Deluxe Select+, platform shock
  • Powerful 4-piston hydraulic disc brakes
  • Shimano Deore M5100 11-speed drivetrain
  • Maxxis Double Down front and rear tyres
  • 200mm dropper post on XL/L/M, 150mm on S, 125 mm on XS
Axles: REAR: MERIDA COMP TR, including removable lever, 6 allen key
Bottom bracket: Race Face BSA 68/73 – 24mm
Brakes: Shimano Deore M6120, 4 piston
Chain: KMC X11
Crankset: Race Face Ride, 32T 170 mm-S up
Derailleur rear: Shimano Deore M6100 Shadwo+
Fork: Rock Shox Yari RC, Air, 170mm Travel, Tapered, 42mm fork offset, 29.5x2.8" Max Tyre Width
Frame: ONE-SIXTY LITE III, 171mm mullet / 162mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket
Freewheel: Shimano Deore M5100, 11-51T, 11-speed Cassette
Grip: MERIDA EXPERT EC
Handlebar: MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise
Handlebar stem: MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise 40 mm all sizes
Headset: MERIDA-8151 1-1/8"-1.5" cartridge bearing set
Hubs: FRONT: Shimano MT400-B, 110x15, 32H, Centerlock / REAR: Shimano MT400-B, 148x12, 32H, Centerlock
Rim: MERIDA COMP TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M / L & XL rear 29"
Rotor front: Shimano RT30, 203 mm
Rotor rear: Shimano RT30, 203 mm
Saddle: MERIDA COMP SL, V-mount
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: MERIDA EXPERT TR II, 34.9mm, 0° Setback, XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT
Shock: Rock Shox Deluxe Select+, platform
Tyre front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR, 27.5x2.4" XS/S/M 29x2.4" L/XL, fold, TR DD 3C MaxxTerra
Weight: 16.68 kg weighed at frame size MID
Wheel size: 29" / 27.5" (Mullet Bike)



Frame Size
XShort
Short
Mid
 Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29" 29"
ST seat tube [mm] 400 410 425 445 470
TT top tube [mm] 535 562 589 621 653
CS chain stay length [mm] 434 434 434 437.5 437.5
HTA head tube angle [°] 64 64 64 64 64
STA seat tube angle [°] 79 79 79 79 79
BD bottom bracked drop [mm] 7 7 7 27.5 27.5
HT head tube [mm] 95 95 95 105 120
FL fork length [mm] 581 581 581 581 581
R reach [mm] 415 442 470 498 525
S stack [mm] 615 615 615 625 638
WB wheel base [mm] 1188 1215 1242 1275 1308
SH stand over height [mm] 735 740 743 740 735
