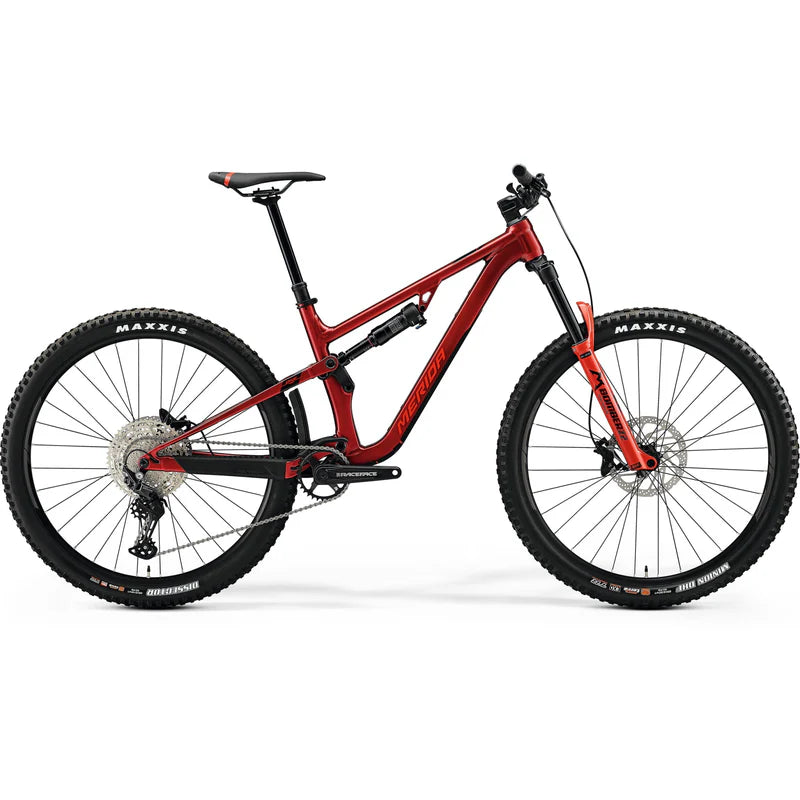

Merida One Forty 500
Merida One Forty 500
Trail riding is all about going further, faster than ever before. The all-new One Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail geometry that's equally happy cleaning the toughest climbs as it is ripping down high-mountain trails. Made for the toughest trails in the world, the One Forty 500 is the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. Fitted with a kit that delivers solid performance, the Marzocchi Z2, Air, 150mm travel fork is paired with a Rock Shox Deluxe Select+ shock. A wide range Shimano Deore M5100 1 x 11 speed drivetrain turns your effort into go and four-piston brakes turn the lightest touch into slow. Rounding off the build is a long travel internally routed dropper post.
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical new trail geometry with full 29er wheels
- Marzocchi Z2, Air, 150mm travel fork
- Rock Shox Deluxe Select+, lockout shock
- Wide-range Shimano Deore M5100 11-speed drivetrain
- Shimano Deore M6120, 4 piston hydraulic disc brakes
Axles: | REAR: MERIDA COMP TR, including removable lever, 6 allen key |
---|---|
Bottom bracket: | Race Face BSA 68/73 – 24mm |
Brakes: | Shimano Deore M6120, 4 piston |
Chain: | KMC X11 |
Crankset: | Race Face Ride, 32T 170 mm-S, 175 mm-M up |
Derailleur rear: | Shimano Deore M6100 Shadwo+ |
Fork: | Marzocchi Z2, Air, 150mm Travel, Tapered, 44mm fork offset |
Frame: | ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket |
Freewheel: | Shimano Deore M5100, 11-51T, 11-speed |
Grip: | MERIDA EXPERT EC |
Handlebar: | MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise |
Handlebar stem: | MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 50 mm all sizes |
Headset: | MERIDA-8151 1-1/8"-1.5" cartridge bearing set |
Hubs: | FRONT: Shimano MT400-B, 110x15, 32H, Centerlock / REAR: Shimano MT400-B, 148x12, 32H, Centerlock |
Rim: | MERIDA COMP TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included) |
Rotor front: | Shimano RT30, 203 mm |
Rotor rear: | Shimano RT30, 203 mm |
Saddle: | MERIDA COMP SL, V-mount |
Season: | 2022 |
Seat clamp: | MERIDA EXPERT |
Seat post: | MERIDA EXPERT TR II, 34.9mm, 0° Setback, XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT |
Shock: | Rock Shox Deluxe Select+, lockout |
Tyre front: | Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera |
Tyre rear: | Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra |
Weight: | 16.49kg (size m) / Weight Limit: 135kg |
Wheel size: | 29" |

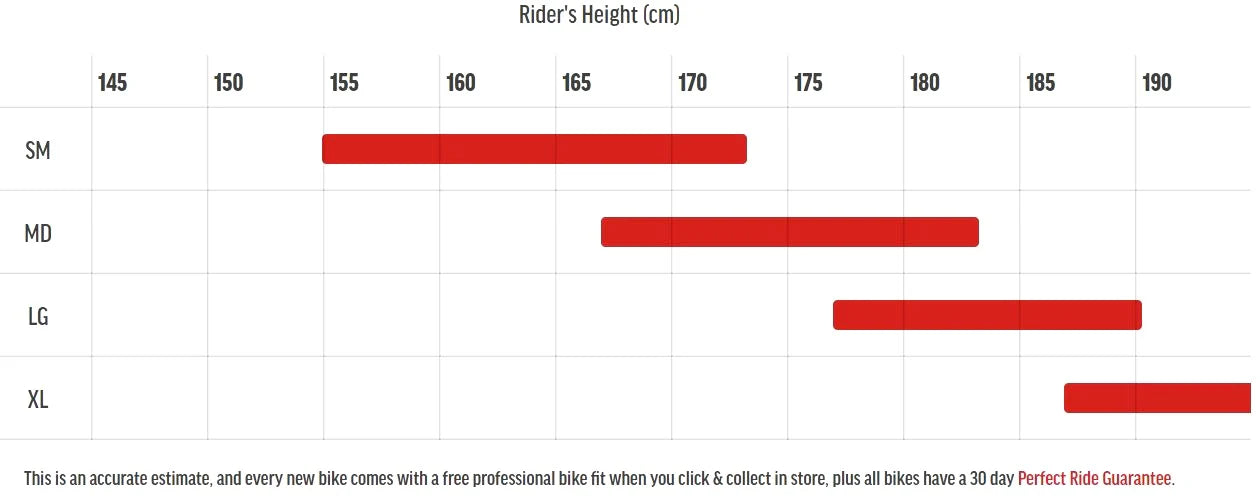

Frame Size | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
top tube [mm] | 532 | 559 | 586 | 618 | 649 |
chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
bottom bracked drop [mm] | 35 | 35 | 35 | 35 | 35 |
head tube [mm] | 95 | 95 | 95 | 105 | 120 |
fork length [mm] | 557 | 557 | 557 | 557 | 557 |
reach [mm] | 426 | 453 | 480 | 509 | 535 |
stack [mm] | 607 | 607 | 607 | 616 | 629 |
wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
trail
