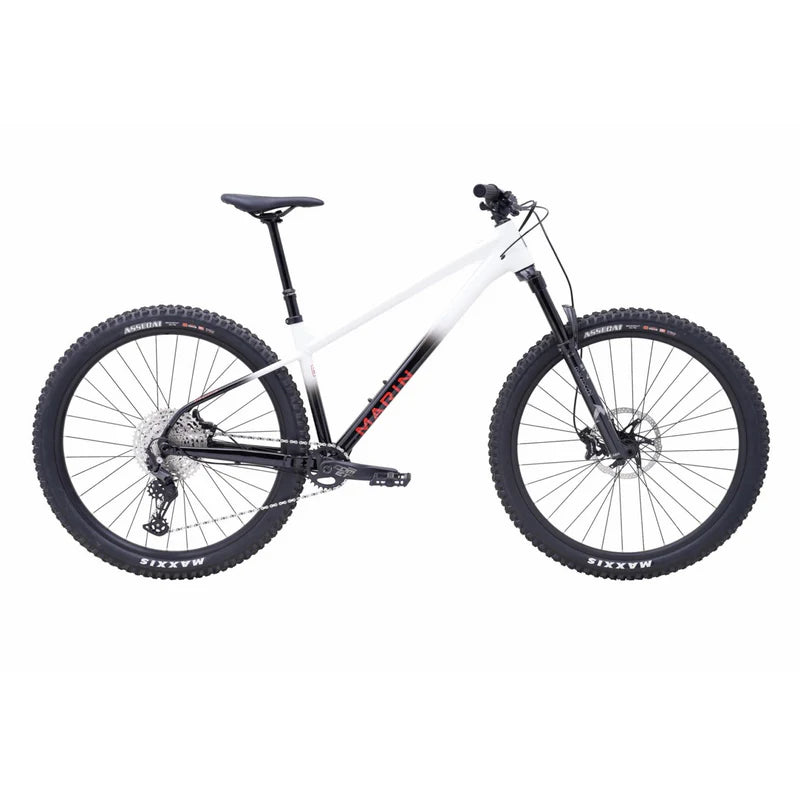

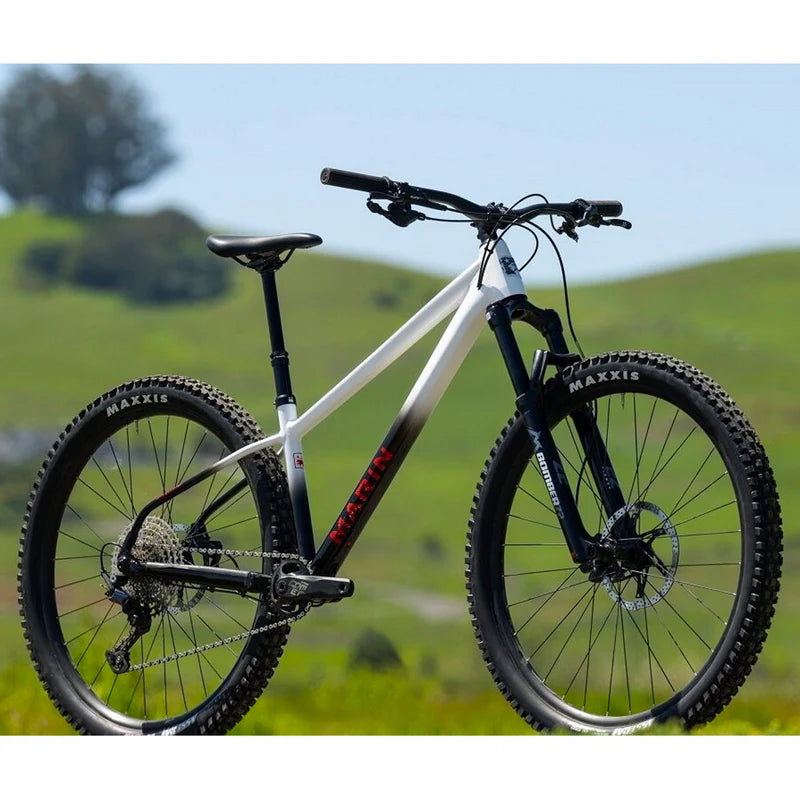

Marin San Quentin 3 29

Dirt jump DNA with all the speed and roll-over of 29" wheels. The San Quentin 3 29 is the top dog in the SQ 29 family. We’ve worked tirelessly to create the very best-specced San Quentin 29 ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. Tektro 4-piston brakes and 12-speed drivetrain? TranzX dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.

Key upgrades over the San Quentin 2 29":

• Marzocchi Bomber Z2 fork
• Shimano Deore wide-range 12-speed drivetrain
• Tektro Slate EVO 4-piston brakes
• Maxxis Assegai tubeless compatible tires

• FRAME

  All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

• FRONT SUSPENSION

  Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset

• RIM

  Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

• HUB REAR

  Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

• HUB FRONT

  Shimano HF-MT410B, 110x15mm, Disc

• SPOKES NIPPLES

  14g Black Stainless Steel

• TIRES

  Maxxis Assegai, 29 x 2.5" MAXX TERRA, EXO Casing, Tubeless Compatible

• DERAILLEUR REAR

  Shimano Deore, 12-Speed, SGS

• DERAILLEUR FRONT

  -

• SHIFT LEVER

  Shimano Deore, 12-Speed, SL-6100IR

• CRANKSET

  FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

• BOTTOM BRACKET

  FSA MegaExo 73mm BSA

• CHAIN

  KMC X-12 Silver and Black

• CASSETTE

  SunRace, 12-Speed, MicroSpline, 10-51T

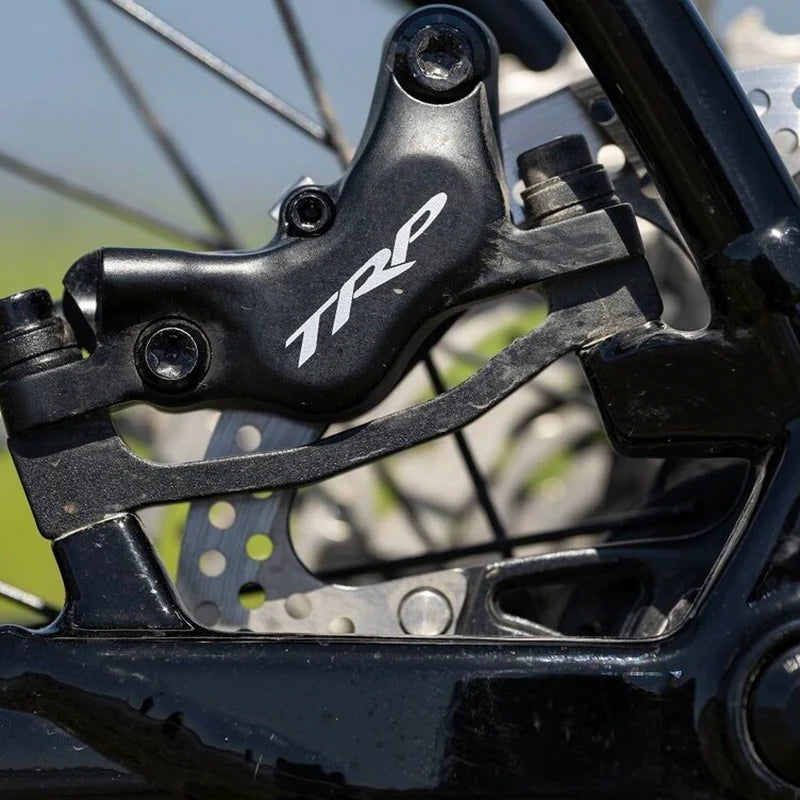

• BRAKES FRONT

  TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor

• BRAKES REAR

  TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 180mm Rotor

• BRAKE LEVERS

  TRP Slate EVO, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  Marin Oso OE Flat

  SM	MD	LG	XL
  STACK	632	636	645	650
  BREACH	422	450	470	500
  HEADTUBE ANGLE	64°	64°	64°	64°
  DHEADTUBE LENGTH	115	120	125	130
  SEATTUBE ANGLE	77°	77°	77°	77°
  SEATTUBE LENGTH	330	380	410	420
  TOPTUBE EFFECTIVE	568	596	619	650
  BB HEIGHT	316	316	316	316
  BB DROP	50	50	50	50
  CHAINSTAY	430	430	430	430
  WHEELBASE	1182	1212	1236	1268
  STANDOVER HEIGHT	650	683	688	695
  FORK OFFSET	44	44	44	44
  SEATPOST DIAMETER	30.9	30.9	30.9	30.9
  HANDLEBAR WIDTH	780	780	780	780
  STEM LENGTH	35	35	35	35
  CRANK LENGTH	170	170	170	170
