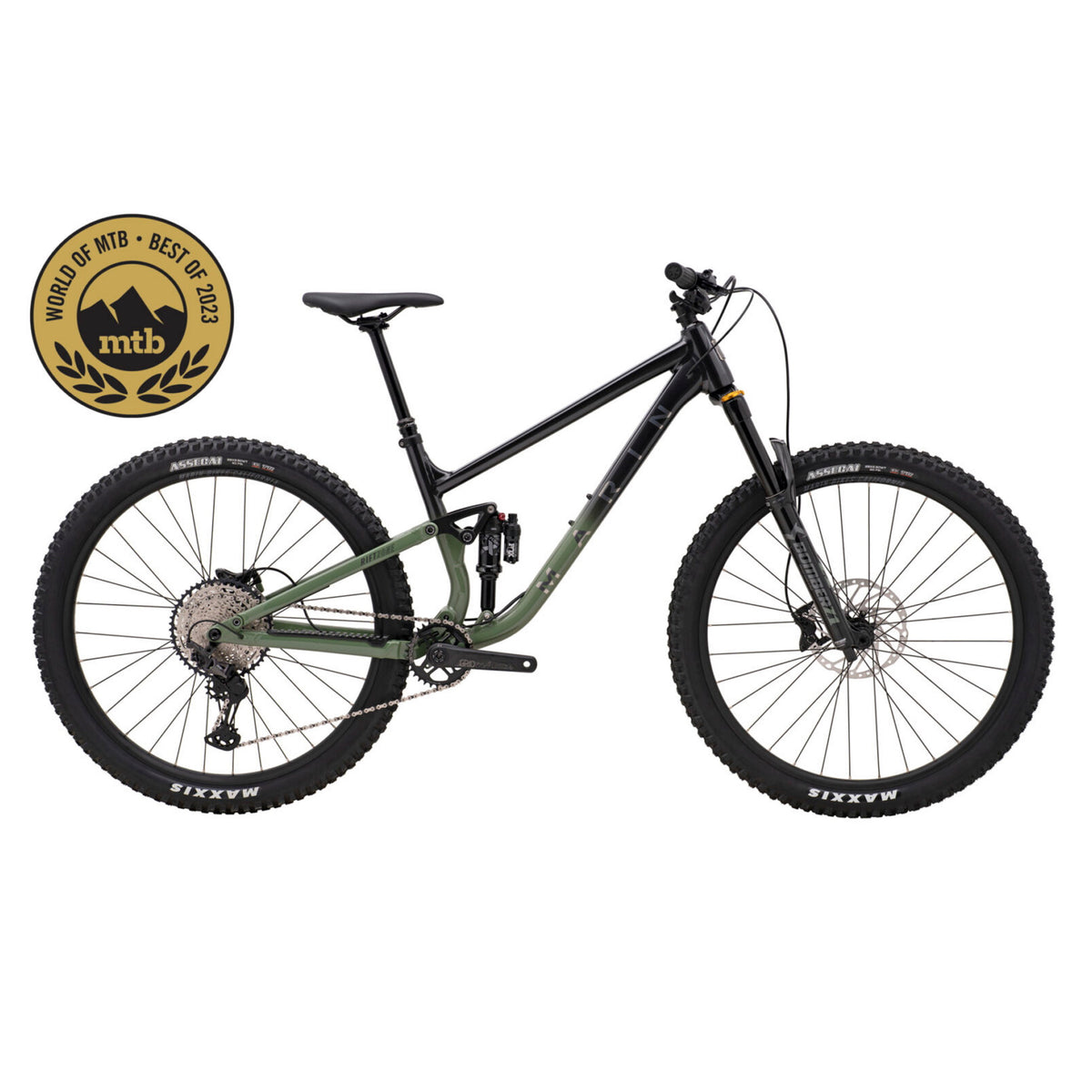

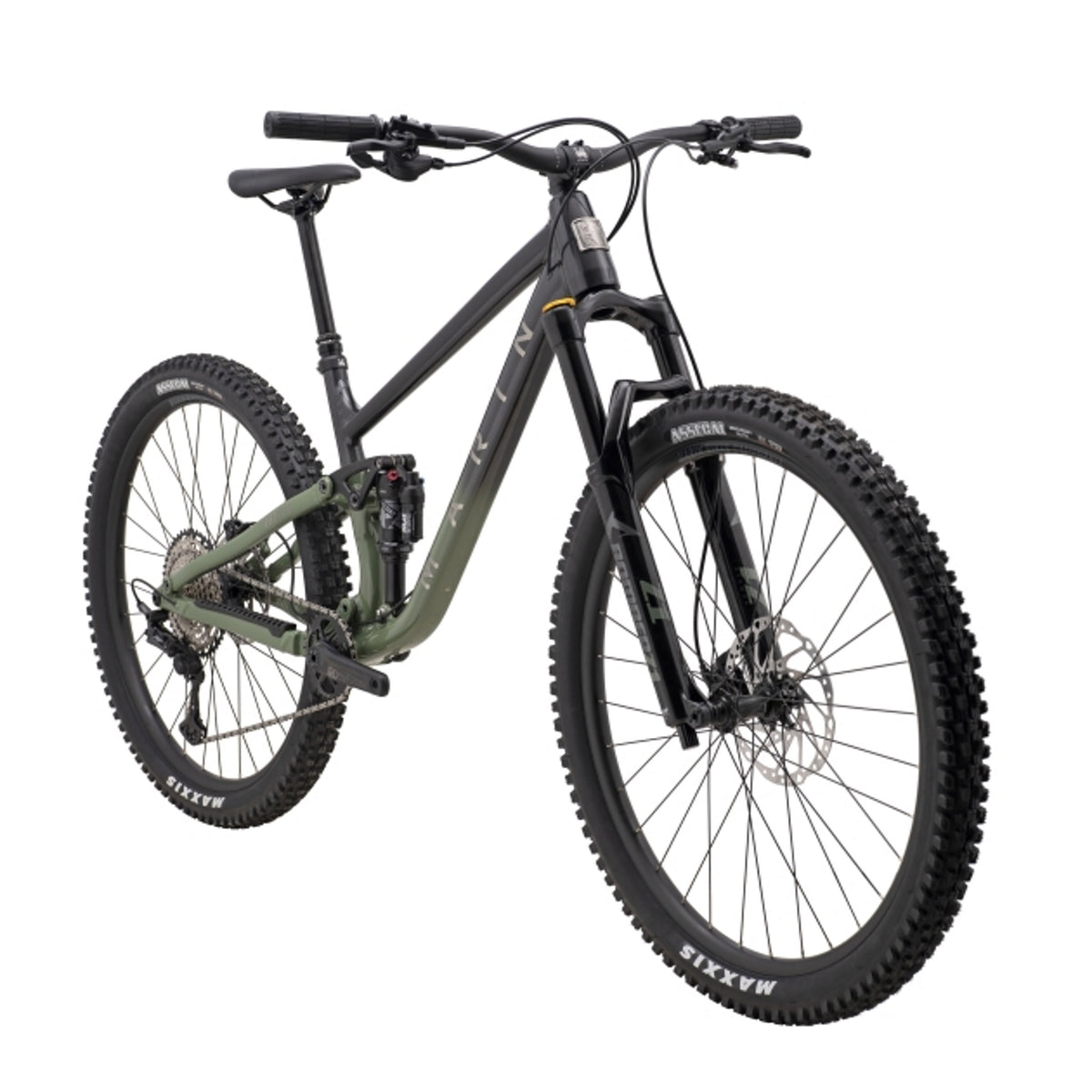

Marin Rift Zone XR Trail
Marin Rift Zone XR Trail
Marin’s ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics to local shred laps to big mountain adventures. The XR in the Marin Rift Zone XR model means Extra Rad. This hard-charging special edition is made for riders that want the raddest, baddest Rifty in the alloy frame division. With an all-new Series 3 6061 Aluminum frame with slick internal cable routing, 29” wheels (27.5” on size small), and Marin’s acclaimed MultiTrac suspension system, which is fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a longer travel on large drops. Rounding off the build is a Marzocchi Bomber Z1 fork, Fox Float X shock, Maxxis Assegai tires, X-Fusion Manic dropper, burly Shimano 4 piston brakes and loads of Marin fine details.
- All New Series 3 6061 Aluminium Frame
- Marin MultiTrac Suspension Platform
- Marzocchi Bomber Z1 140mm Fork
- Fox Float X, Performance Series 130mm Shock
- Shimano SLX/XT 1 x 12 Speed Drivetrain
- Shimano BR-MT420, 4-Piston Hydraulic Disc Brakes
- TranzX Remote Lever Dropper Post
- Maxxis Assegai 2.5” tyres, wheel size depends on frame size
Axles: | Bolt-On Thru-Axle |
---|---|
Bottom bracket: | Mego EXO 73mm BSA |
Brakes: | Shimano BR-MT420, 4-Piston Hydraulic Disc, Metallic Pads |
Chain: | KMC X-12 Silver and Black |
Crankset: | FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
Derailleur rear: | Shimano XT, 12-Speed, SGS |
Fork: | Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset |
Frame: | All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
Freewheel: | Shimano, SLX 12-Speed, 10-51T Cassette |
Grip: | Marin Grizzly, Lock On |
Handlebar: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Handlebar stem: | Marin 3D Forged Alloy, 35mm |
Headset: | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Hubs: | FRONT: Shimano HF-MT410B, 110x15mm, Centerlock / REAR: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body |
Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
Rotor front: | 203mm Rotor |
Rotor rear: | 180mm Rotor |
Saddle: | Marin Speed Concept |
Season: | 2023 |
Seat post: | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
Shock: | Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom |
Spokes: | 14g Black Stainless Steel |
Tyre front: | Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible |
Tyre rear: | Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible |
Wheel size: | 29" / 27.5" (Varies by Frame Size) |

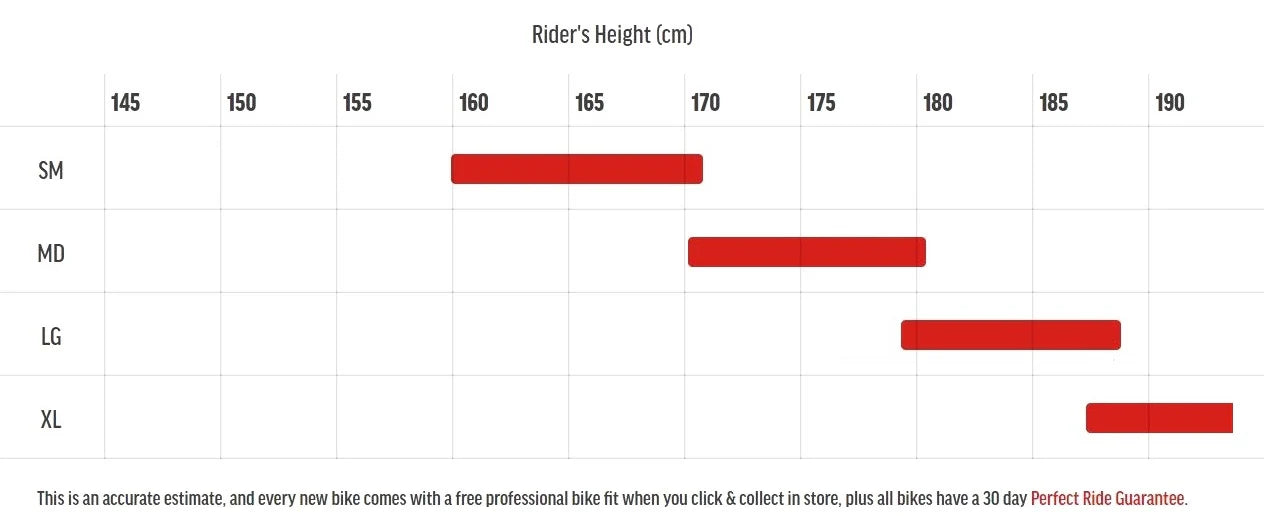

S | M | L | XL | |
---|---|---|---|---|
Stack | 623.6 | 628.2 | 637.3 | 641.8 |
Reach | 435 | 460 | 485 | 515 |
Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
Headtube Length | 110 | 115 | 125 | 130 |
Seattube Angle | 77° | 77° | 77° | 77° |
Seattube Length | 390 | 400 | 425 | 430 |
Toptube Effective | 579 | 605 | 632.1 | 663.2 |
BB Height | 343 | 343 | 343 | 343 |
BB Drop | 35 | 35 | 35 | 35 |
Chainstay | 430 | 430 | 430 | 430 |
Wheelbase | 1170 | 1205.1 | 1234.4 | 1266.3 |
Standover Height | 690.2 | 691.2 | 701.7 | 700.5 |
Fork Offset | 44 | 44 | 44 | 44 |
Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
Handlebar Width | 780 | 780 | 780 | 780 |
Stem Length | 35 | 35 | 35 | 35 |
Crank Length | 170 | 170 | 170 | 170 |
All lengths in millimeters
