Marin Larkspur E
Marin Larkspur E

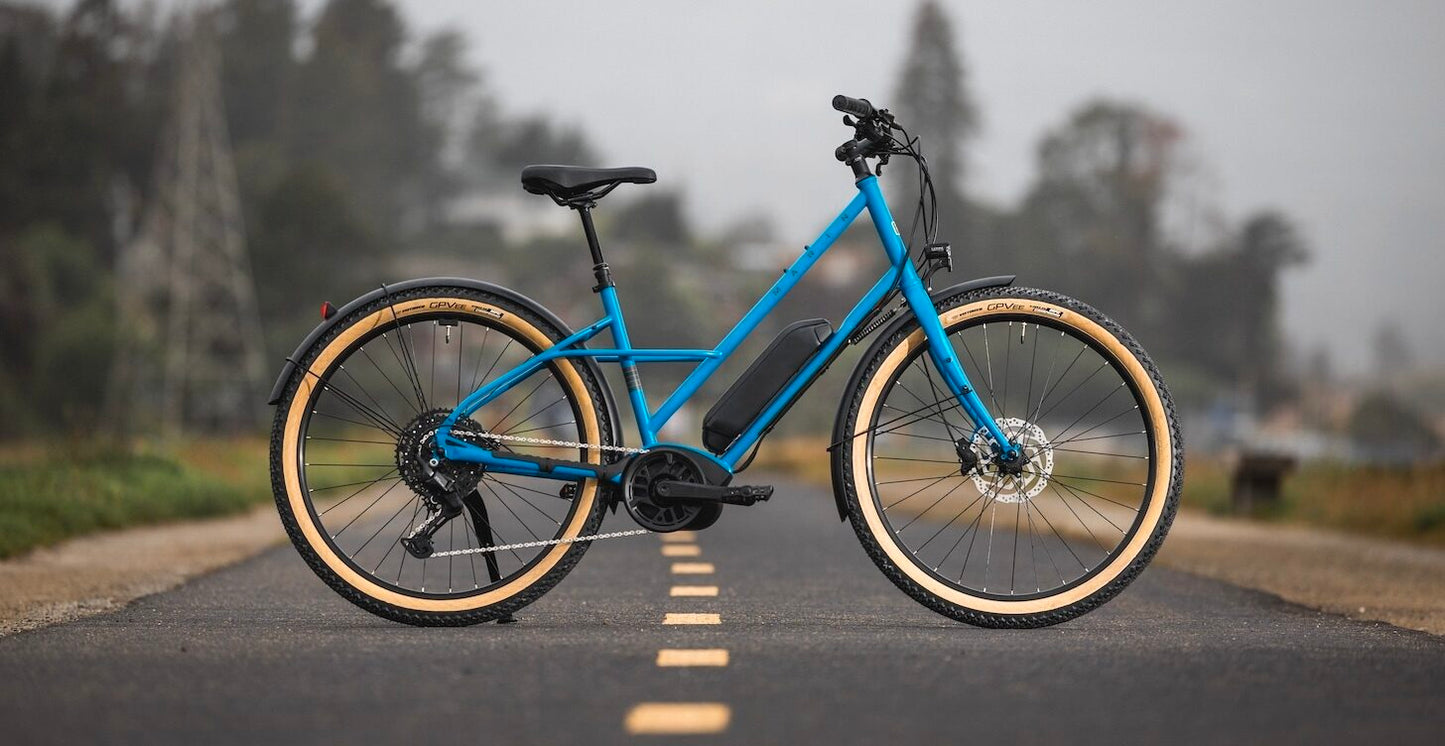

Adventure inspired, commute ready! The Larkspur E takes our modern icon and given it a boost. Larkspur E is ideally suited to a wide range of cycling endeavors, from fire road cruising to neighborhood exploring, errands, commuting, and beyond. It's an adventure bike, it's a gravel bike, it's a mountain bike, it’s one of our funnest bikes yet! The Larkspur E's Bosch Active Line Plus drive unit offers a range of 25-93 miles (40-150km), depending on rider weight, terrain, climate, and level of assistance used, and can recharge in about four hours. The top assisted speed is 20MPH in the US and New Zealand and 25 km/h in other global markets, and the different modes are selected via the controller with a clean integrated display next to the left grip. Shimano's CUES 10-speed drivetrain has a wide range and industry-leading durability when paired with center motors, while hydraulic disc brakes with large rotors help you effortlessly stop on the proverbial dime. And when you do come to a stop, push the lever for the dropper post to put both feet safely on the ground.
-
FRAME
Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
-
FORK
CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
-
RIM
Marin Aluminum Double Wall, Disc Specific
-
HUB REAR
Forged Alloy, Disc Specific, 32H
-
HUB FRONT
Forged Alloy, Disc Specific, 32H
-
SPOKES
14g Black Stainless Steel
-
TIRES
Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
-
DERAILLEUR REAR
Shimano CUES 10-Speed
-
DERAILLEUR FRONT
-
-
SHIFT LEVER
Shimano CUES 10-Speed
-
CRANKSET
Forged Aluminum w/ 38T Steel Chairing
-
MOTOR
Bosch Active Plus, 250W, 50Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)
-
CHAIN
KMC E11S
-
CASSETTE
Shimano CUES 10-Speed 11-48T
-
BRAKES FRONT
Shimano MT201 Hydraulic, 180mm Rotor
-
BRAKES REAR
Shimano MT201 Hydraulic, 180mm Rotor
-
BRAKE LEVERS
Shimano MT201 Hydraulic
-
HANDLEBAR
Marin Urban Alloy, 31.8mm Clamp
-
STEM
Marin Alloy
-
GRIPS
Marin County
-
HEADSET
FSA Orbit CE No.8B
-
SEATPOST
TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel
-
SADDLE
Marin City Plush
-
PEDALS
Nylon Platform
-
BATTERY

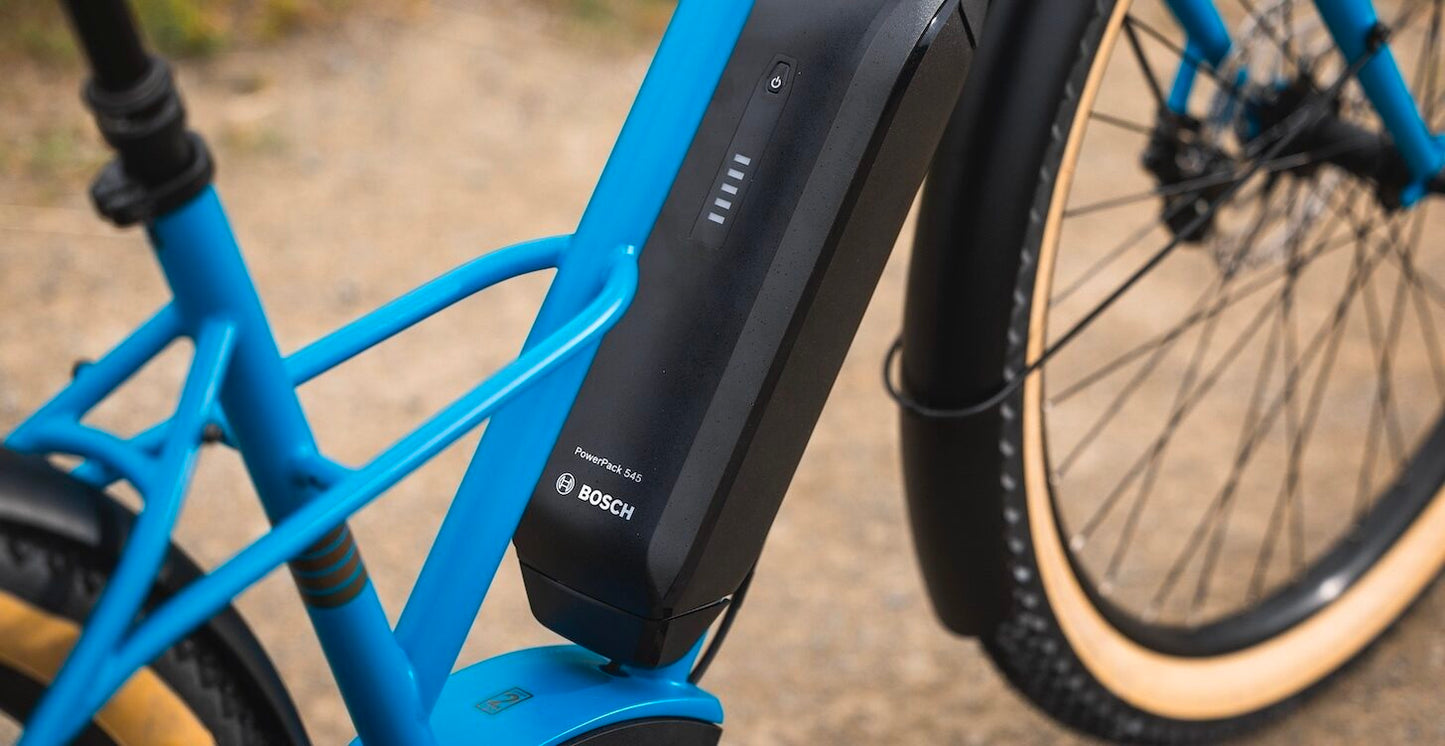

Bosch Power Pack 545, 545Wh
-
EXTRAS

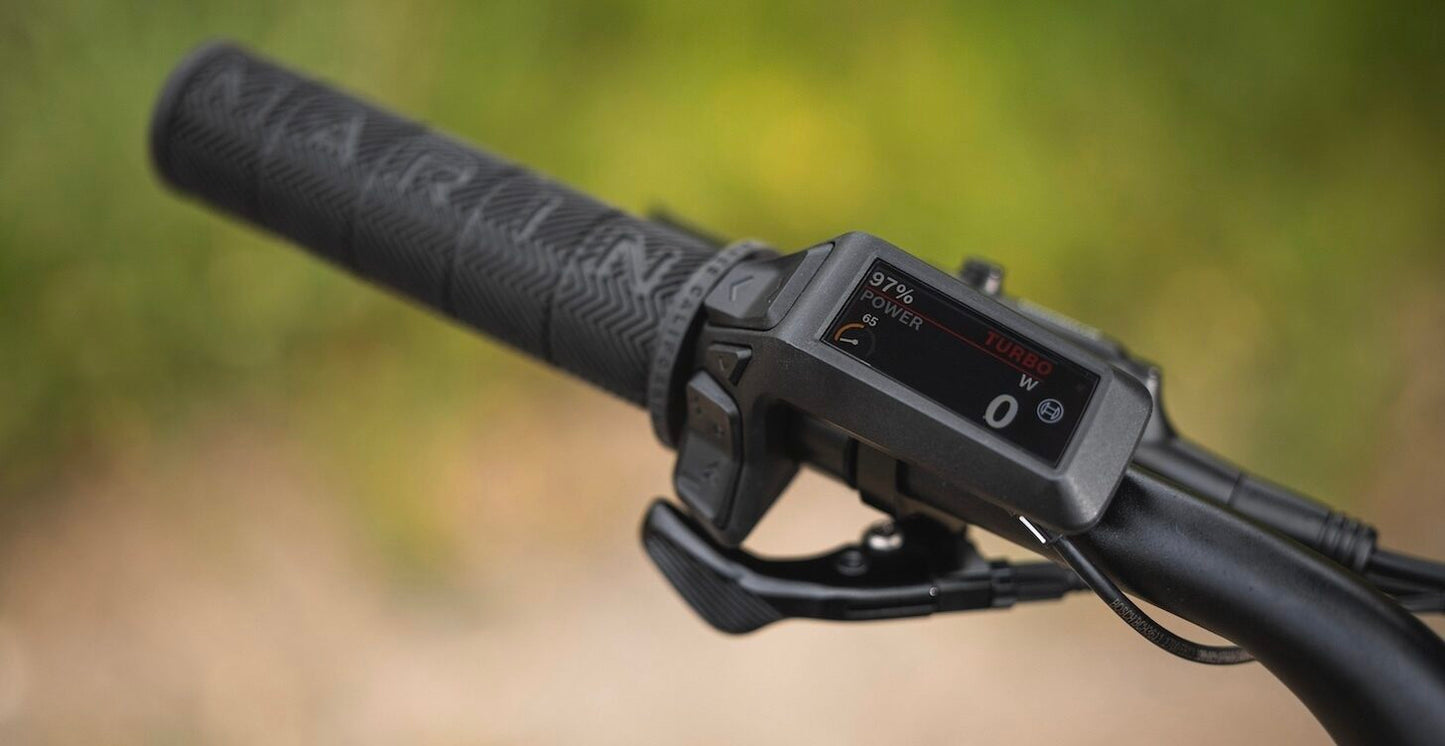

Bosch Purion 200 Controller & LCD Display, Lezyne Power STVZO E500+ Headlamp, Lezyne Fender STVZO Taillamp, Rear Kickstand, Bosch EB12.110.016; 2A Charger
-
Range, Charging Time
25-93 miles / 40-150km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 7.3 Hours (estimated, under ideal conditions)
S M AStack 639 649 658 BReach 390 410 430 CHeadtube Angle 67.5° 67.5° 67.5° DHeadtube Length 230 240 250 ESeattube Angle 73.5° 73.5° 73.5° FSeattube Length 390 450 500 GToptube Effective 579 602 625 HBB Height 280 280 280 IBB Drop 75 75 75 JChainstay 463 463 463 KWheelbase 1135 1159 1182 LStandover Height 546 575 579 MFork Offset 50 50 50 SeatPost Diameter 27.2 27.2 27.2 Handlebar Width 700 700 700 Stem Length 45 45 45 Crank Length 170 170 170
