Marin El Roy

Marin El Roy

$2,695.00 NZD
$3,999.99 NZD $2,695.00 NZD
Sale Sold out
Tax included.

Named in honor of our favourite post-ride taqueria, the Marin El Roy is our take on the perfect winch-up, shred-down hardcore hardtail. We’ve combined the soul of steel with super-modern, gravity-focused geometry and paired it up with big-trucking 29” wheels and a build-kit that’ll take on the roughest and toughest of trails.

The Marin El Roy is built around a Series 3 double-butted and formed CrMo frame. Up front is the iconic Marzocchi Z1 fork (140mm) and we’ve hand-picked a kick-ass components list that we’re proud to ride, including a 12-speed Shimano Deore drivetrain, X-Fusion Manic dropper post, 4-piston Shimano disc brakes and sticky Maxxis Assegai tires in 29x2.5”.

El Roy is available in two sizes - ‘Regular’ and ‘Grande’.


Please note - specifications & price subject to change without prior notice.

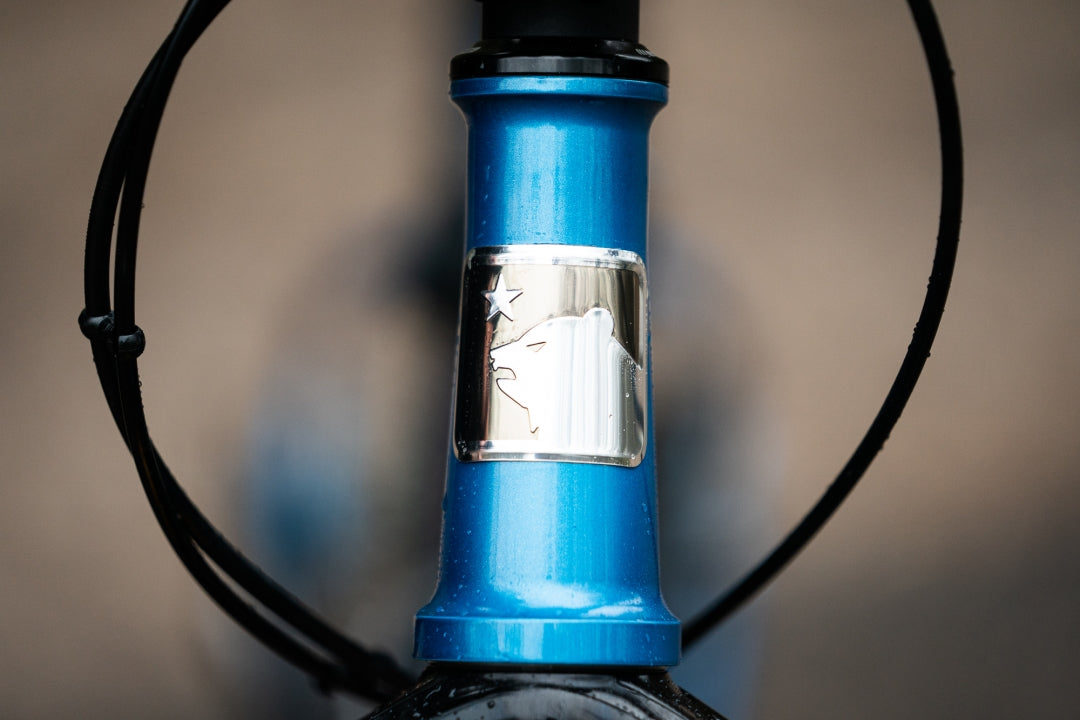

01. FRAME Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
02. FORK Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
03. RIMS Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
04. HUB REAR Shimano HB-MT410B, 148x12mm, Disc, Microspline Freehub Body
05. HUB FRONT Shimano HF-MT410B, 110x15mm, Disc
06. SPOKES 14g Black Stainless Steel
07. TIRES Maxxis Assegai 29x2.5", 3C MAXX GRIP EXO+ Front, 3C MAXX TERRA Double Down Rear, Tubeless Compatible
08. DERAILLEUR REAR Shimano Deore, 12-Speed, SGS
09. SHIFT LEVER Shimano Deore, M6100, 12-Speed
10. CRANKSET FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
11. BOTTOM BRACKET Mego EXO 73mm BSA
12. CHAIN KMC X-12 Silver and Black
13. CASSETTE Shimano, Deore 12-Speed, 10-51T
14. BRAKES FRONT Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor
15. BRAKES REAR Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
16. BRAKE LEVERS Shimano BL-M4100 Hydraulic, I-Spec EV Compatible
17. HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
18. STEM Marin 3D Forged Alloy, 35mm
19. GRIPS Marin Grizzly, Lock On
20. HEADSET FSA Orbit 40 No.42 ACB
21. SEATPOST X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel
22. SADDLE Marin Speed Concept
23. EXTRAS Bolt-On Thru-Axle
View full details
