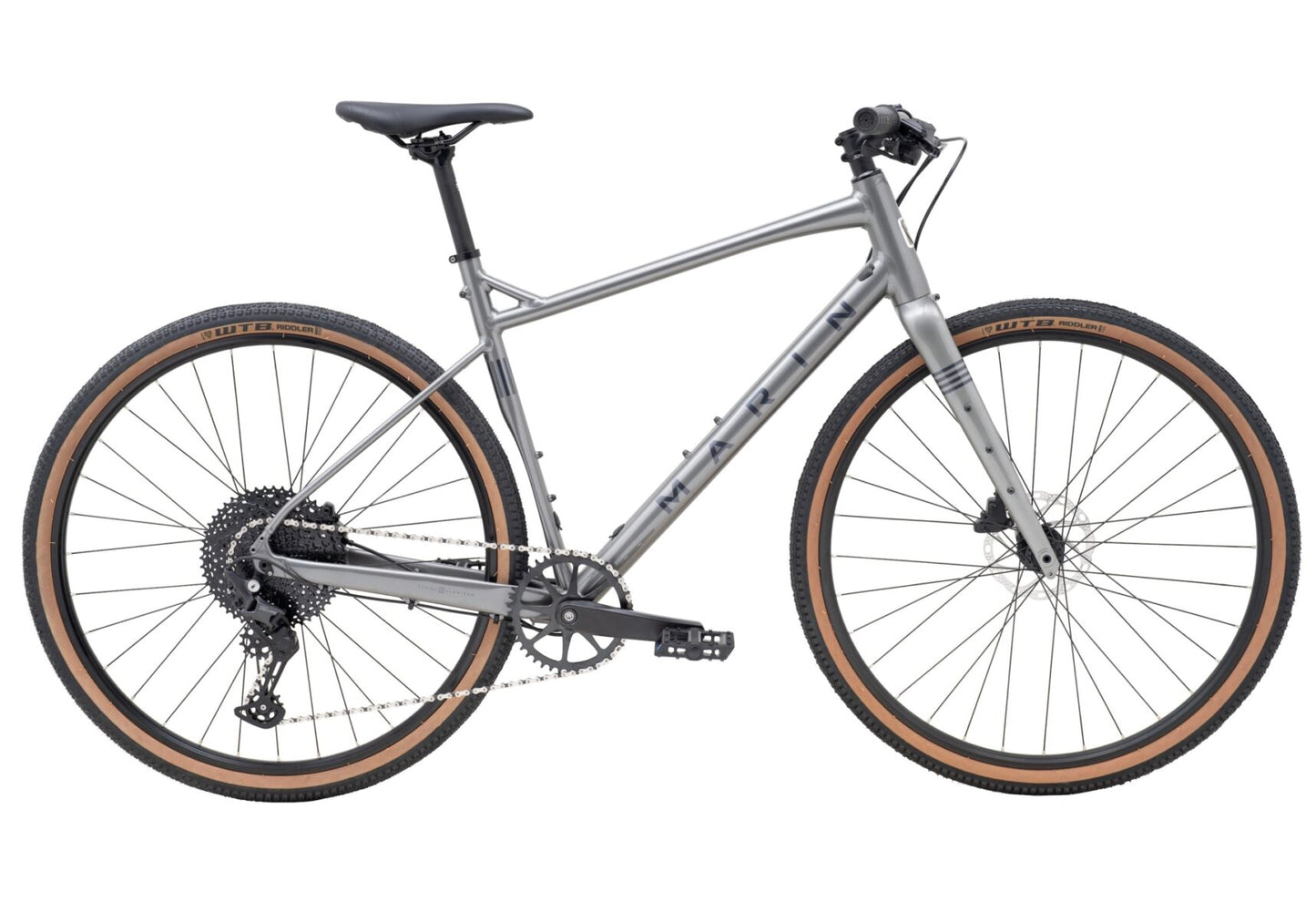

DSX 1 700C
DSX 1 700C
The Marin DSX is everything you want from a modern, flat-bar gravel bike. Zippy aluminum frame, compliant fork, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Taking inspiration from the Gestalt X drop bar line, Marin made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars. Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.
Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 1 x 11-speed Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
- Series 3 Aluminum Frame, Internal Cable Routing, Mudguard and Rack Mounts
- Marin Full Carbon Fork with Tapered Steerer, Fender Eyelets
- Wide-range Shimano Deore 11-speed drivetrain
- Tektro hydraulic flat mount disc brakes
- WTB Riddler tyres 700 x 45mm, room for 29x2.1” knobbies
Axles: | Bolt-On Thru-Axles F and R |
---|---|
Bottom bracket: | Sealed Cartridge |
Brakes: | Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor |
Cassette: | Shimano, CSM5100, 11-Speed, 11-51T |
Chain: | KMC X11 |
Crankset: | Forged Aluminum, 42T Steel Narrow Wide Chainring |
Derailleur rear: | Shimano Deore, RDM5100, 11-Speed |
Fork: | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
Frame: | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
Grip: | Marin MTB |
Handlebar: | Marin MiniRiser |
Handlebar stem: | Marin 3D Forged Alloy |
Headset: | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
Hubs: | FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Forged Aluminum Alloy, 142x12mm, Disc, 32H |
Pedals: | Marin Oso OEM Nylon Platform |
Rim: | Marin Aluminum Double Wall, 21mm Inner, Disc Specific |
Saddle: | Marin DSX |
Season: | 2024 |
Seat post: | Marin Alloy |
Spokes: | 14g Black Stainless Steel |
Tyre front: | WTB Riddler, 700C x 45mm |
Tyre rear: | WTB Riddler, 700C x 45mm |
Wheel size: | 700c |
Stack | 544.4 | 572.5 | 600.6 | 628.7 |
Reach | 380 | 405 | 420 | 435 |
Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
Head Tube Length | 120 | 150 | 180 | 210 |
Seat Tube Angle | 74° | 74° | 74° | 74° |
Seat Tube Length | 430 | 480 | 520 | 558 |
Top Tube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
BB Drop | 80 | 80 | 80 | 80 |
Chain Stay | 425 | 425 | 425 | 425 |
Wheel Base | 1024.42 | 1060 | 1085.4 | 1110.9 |
Stand Over Height | 658.76 | 700.51 | 730.39 | 758.5 |
Fork Offset | 50 | 50 | 50 | 50 |
SeatPost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
Handlebar Width | 640 | 680 | 680 | 680 |
Stem Length | 70 | 70 | 70 | 70 |
Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
