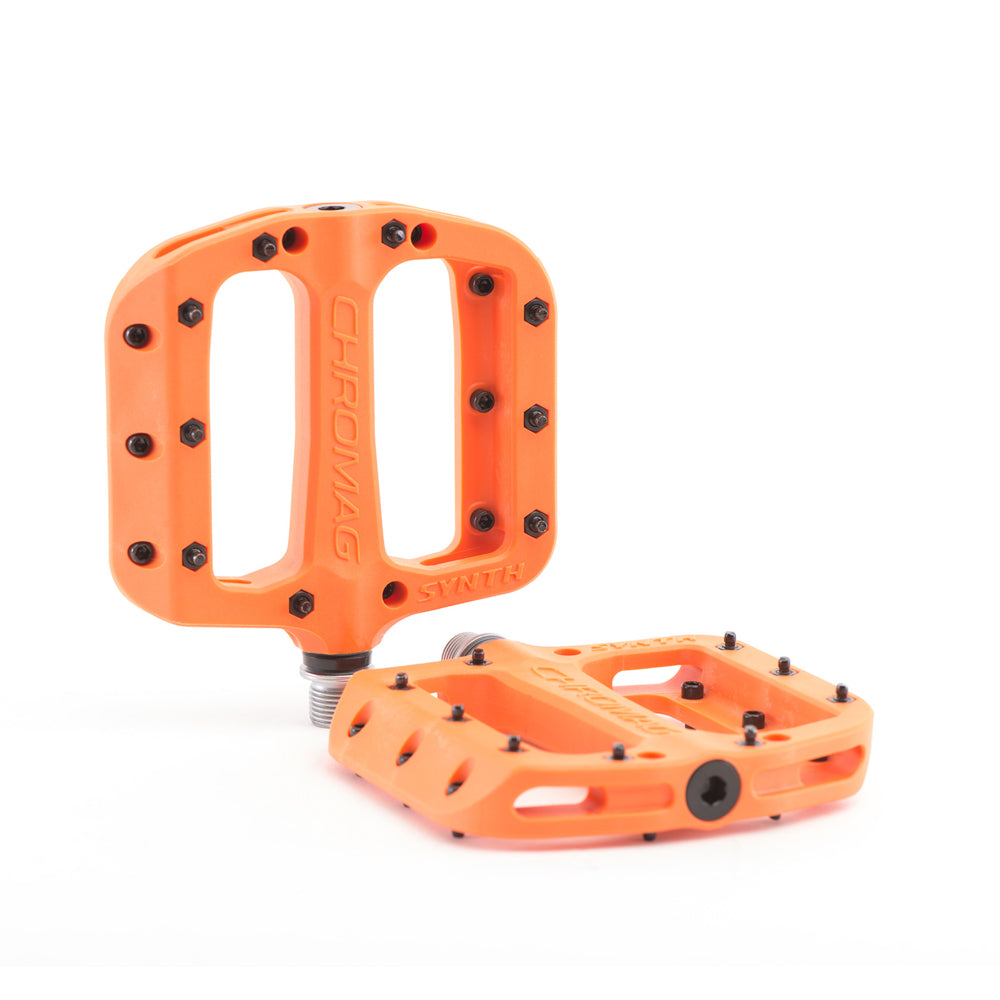

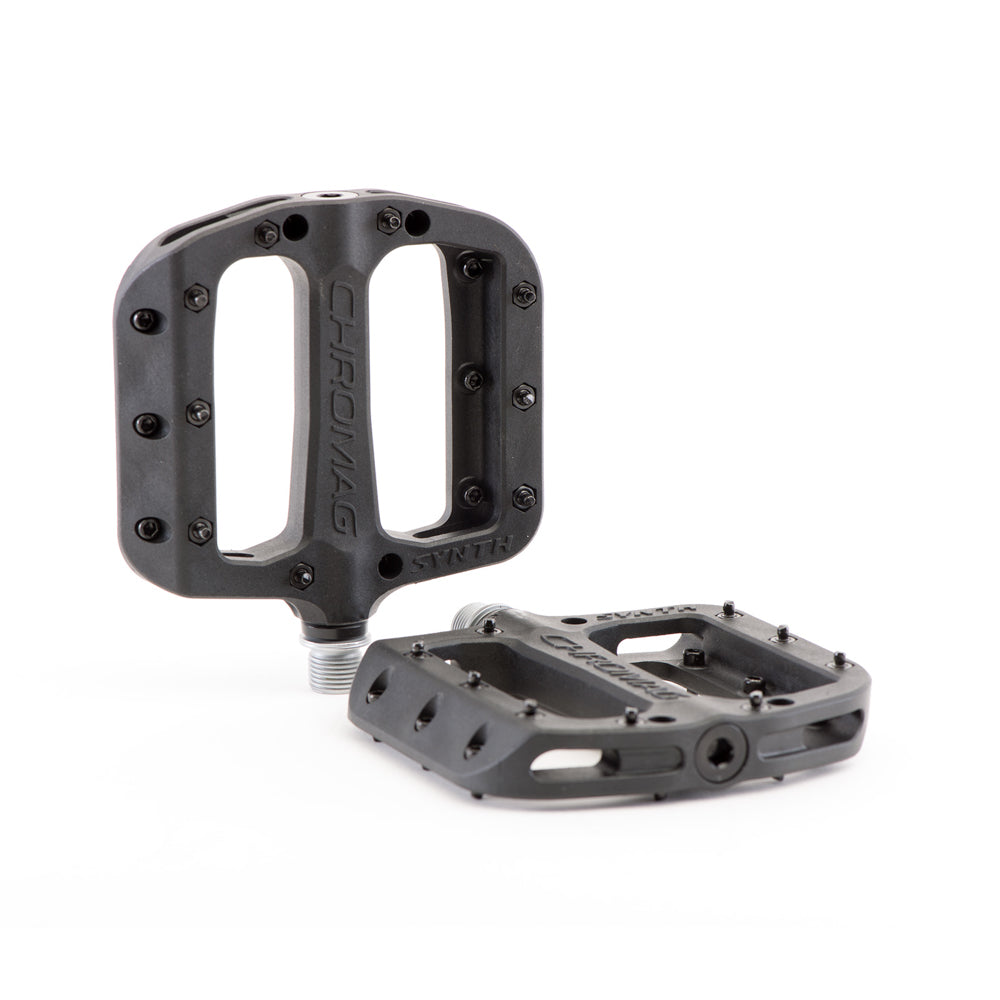

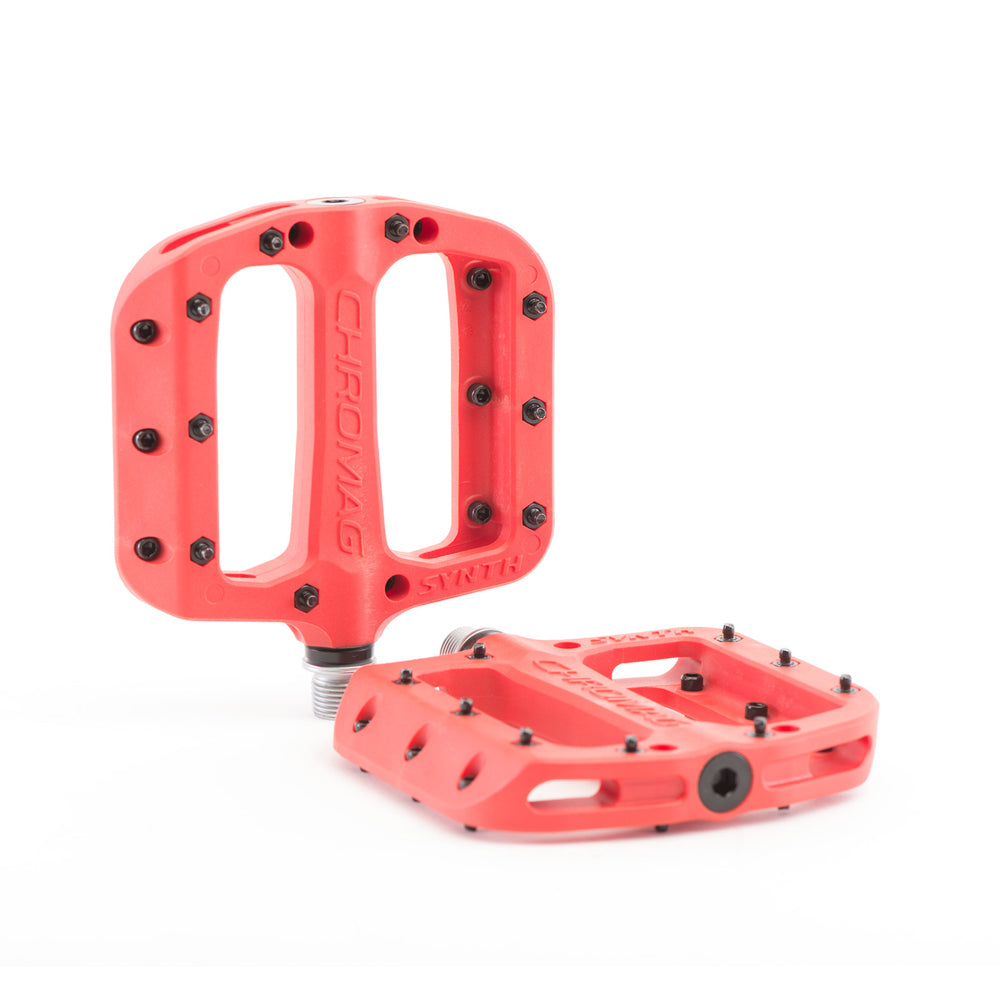

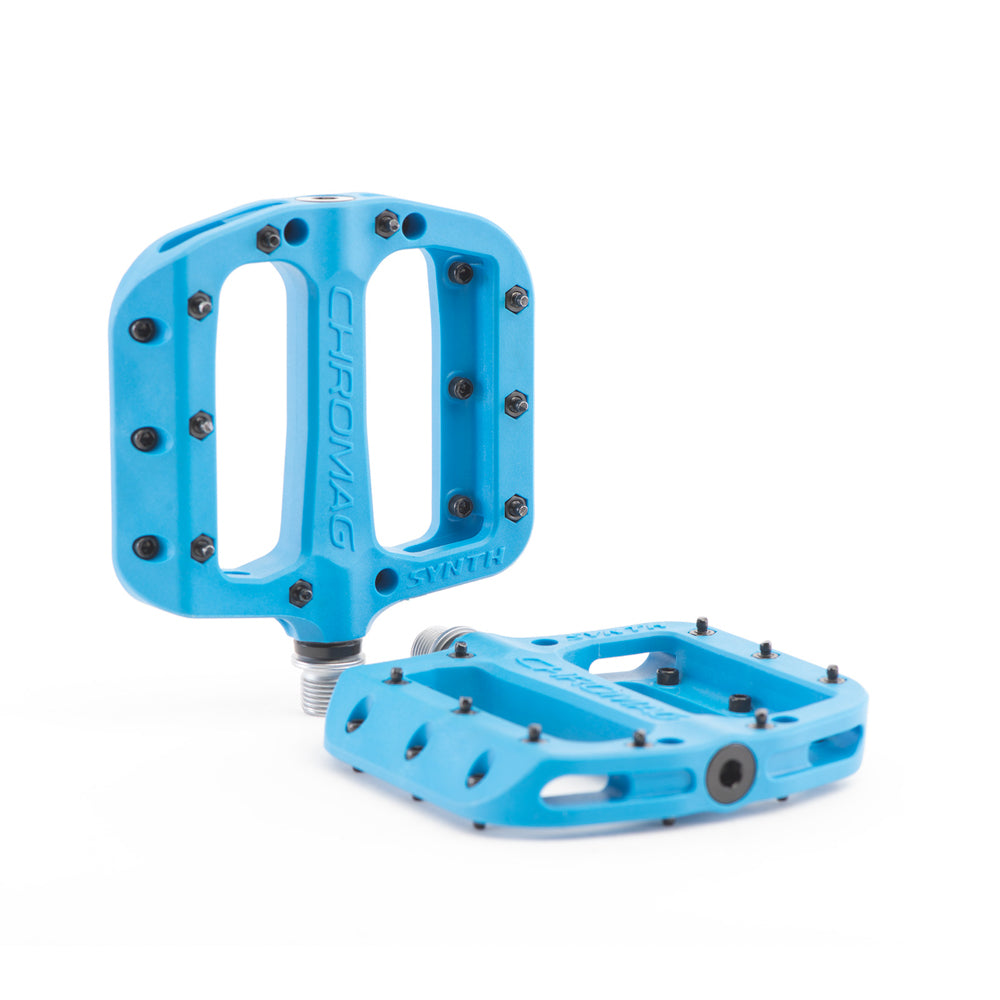

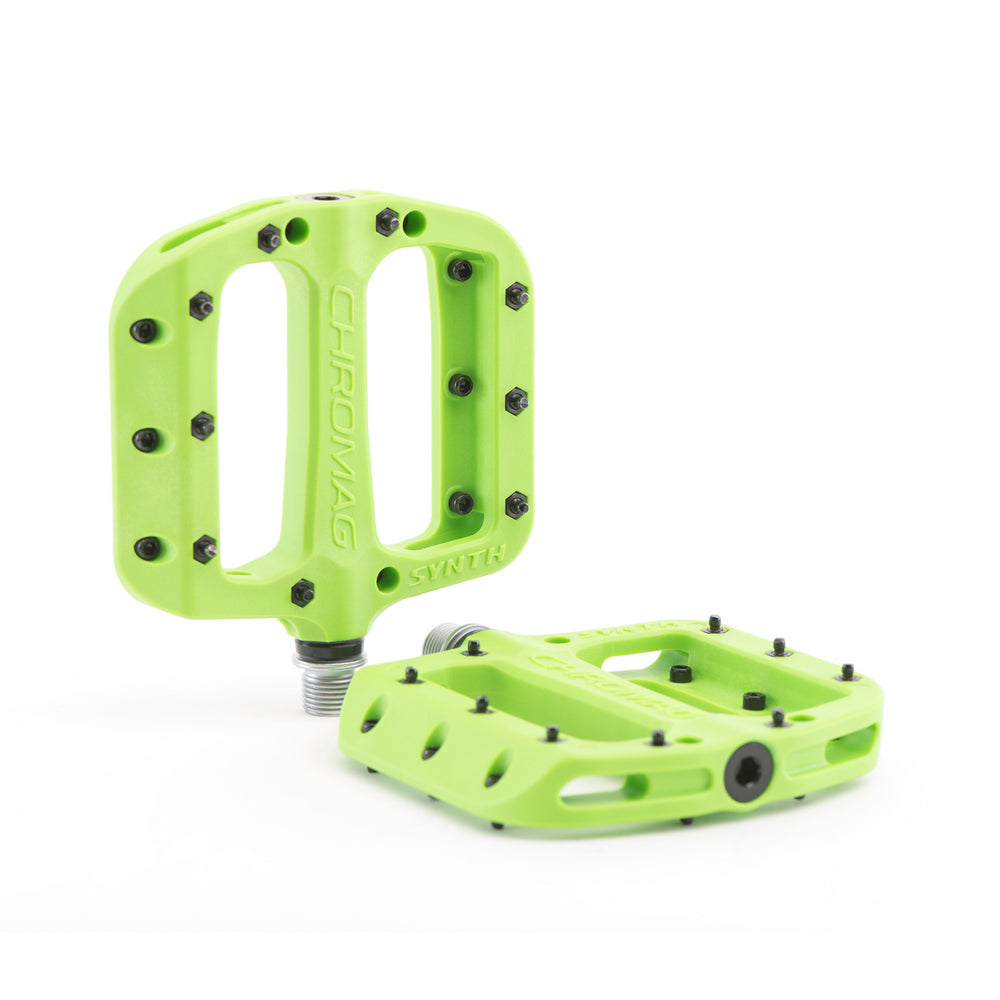

CHROMAG SYNTH PEDALS
Light, impact resistant and won’t break the bank.
The Synth is a light, affordable pedal with all the features, using injection molded composite material
G3 Axle System
We designed the G.3 axle system with longevity and serviceability in mind.The G.3 system uses a high-strength chromoly axle with a double seal, inner bushing, and outer cartridge bearing.
The Pilot & Radar use all the same components, but with a shorter axle. We designate this axle as F1
Replaceable Pins
Our pin system is height adjustable via the included washers. They are easily replaceable from the other side of the pedal body, even if damaged.
Some models feature alternate pin locations for customization, or if existing holes are damaged.
Each set comes with spare pins.
SPECIFICATIONS
| Profile |
Concave Design, 15.0mm at platform center |
| Material |
Polycarbonate / Nylon |
| Platform |
110mm x 107mm |
| Stance |
60mm |
| Pins |
18 per pedal |
| Weight |
380g/pair |
|
|
FEATURES
- Injection moulded with concave surface that is only 15mm at center
- 18 height adjustable traction pins/pedal with alternate placement holes
- G3 Axle system featuring hardened chromoly axle, dual seals, inner bushing and precision cartridge bearing

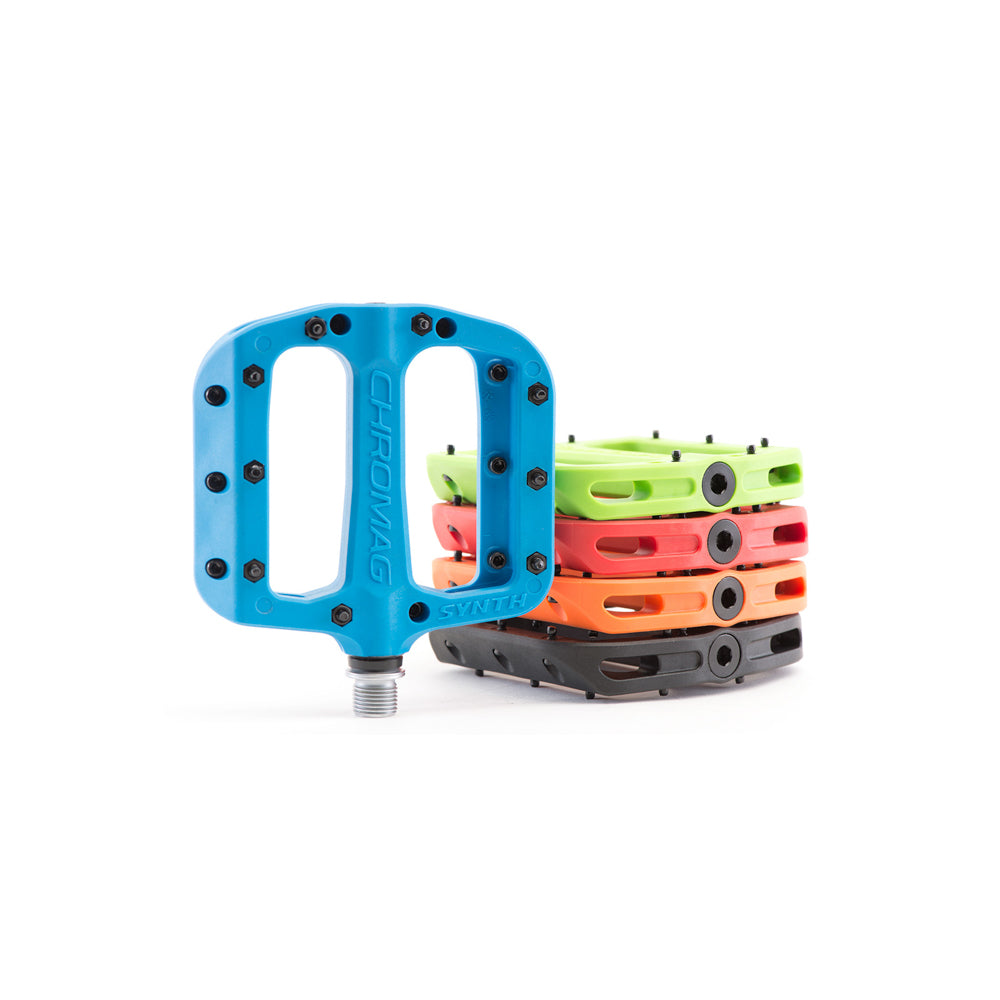

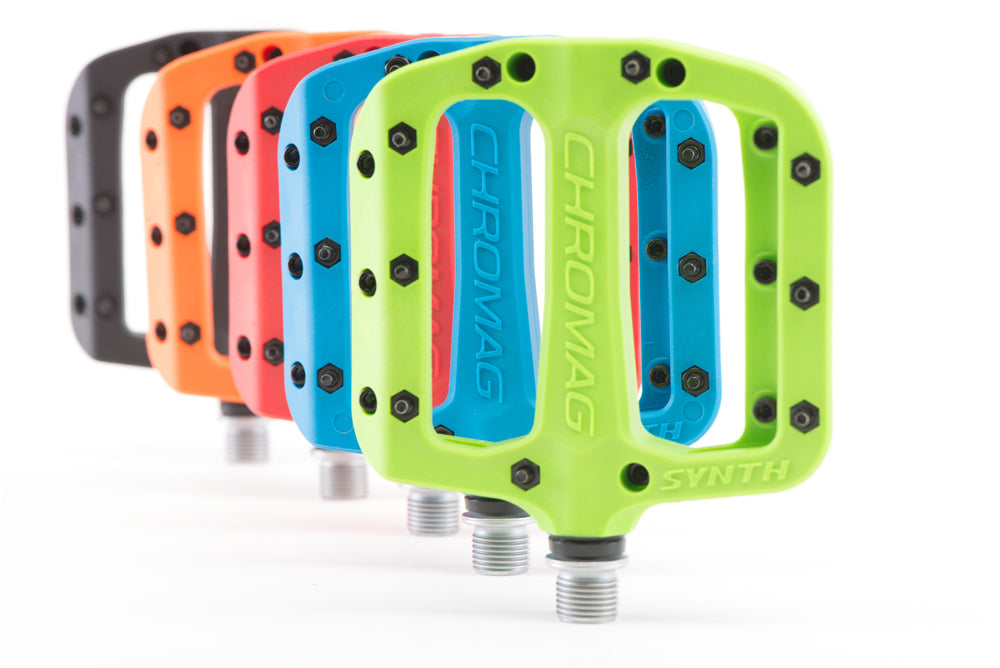

Colours Available
- Black
- Red
- Blue
- Green
- Orange
- Purple
|
